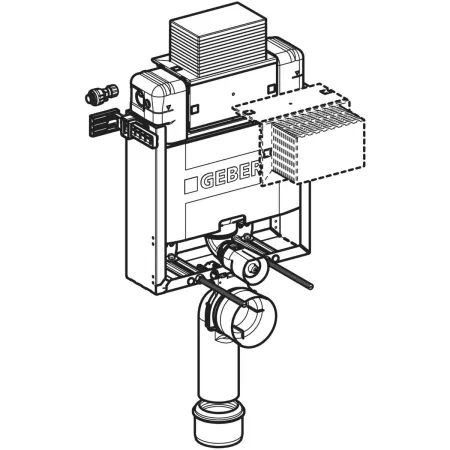

Geberit Kombifix Element for Wall-Hung WC – 82 cm with Alpha Concealed Cistern 12 cm

The Geberit Kombifix 82 cm with Alpha Cistern is an entry-level in-wall installation element built for wall-hung WC applications in masonry and part-height prewall constructions. Its zinc-plated frame and four fastening brackets deliver robust structural support, while the Alpha concealed cistern provides dependable dual-flush performance at 12 cm depth.

Adaptable Installation

An adjustable installation depth of 12–20.5 cm accommodates varying wall build-ups, giving installers the flexibility to match site conditions. The cistern supports top or front actuation and is fully insulated against condensation for long-term performance.

Straightforward, Tool-Lean Assembly

The connection bend mounts without tools and fastening for the bend is accessible from the front, significantly reducing installation time. A PE-HD connection bend and adapter socket, protection box for the service opening, and all fastening hardware are included in the supply. Covered by Geberit's ten-year manufacturer's guarantee on cistern and frame components.

Specifications

  • Dimensions: W 42 × H 82 × D 12 cm
  • Adjustable Depth: 12–20.5 cm
  • Flow Pressure: 0.1–10 bar
  • Max. Water Temperature: 25 °C
  • Flush Volume (factory setting): 6 / 3 L
  • Flush Volume Large (adj. range): 4 / 4.5 / 6 / 7.5 L
  • Flush Volume Small (adj. range): 2–4 L
  • Frame Material: Steel (zinc-plated)
  • Height-Adjustable: No
  • Cistern Actuation: Top or front
  • Application: Masonry walls; part-height prewall; wall-hung WCs per EN 33:2011; dual flush
  • Scope of Delivery: Water supply R 1/2″ with integrated angle stop valve, protection box, WC connection set ø 90 mm, PE-HD connection bend ø 90 mm, PE-HD adapter socket ø 90/110 mm, 2 protection plugs, 2 threaded rods M12, fastening material
  • Guarantee: 10-year manufacturer’s guarantee
  • 110.212.00.1

Alpha Concealed Cistern: Reliable 12 cm dual-flush cistern with top or front actuation, adjustable depth, and full condensation insulation for dependable in-wall performance.
