Geberit Duofix Wall-hung WC Element

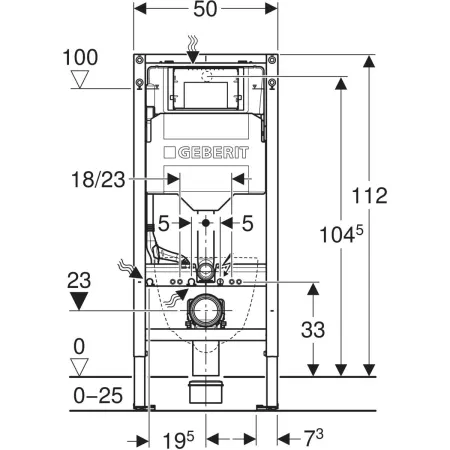

The Geberit Duofix wall-hung WC element belongs to the 2025 range and provides a statically self-supporting, powder-coated steel frame protected against corrosion. It works across metal frame walls, wood frame walls, Geberit Duofix system walls, and room-height partition walls. The frame accommodates floor constructions from 0 to 25 cm and supports wall-hung WCs with connection dimensions per EN 33.

Installation & Cistern

The element uses a pull-out plate for lateral fastening on metal or wood profiles, with rotating foot plates fitting U profiles UW 50 and UW 75. The Geberit Sigma concealed cistern 12 cm is fully insulated against condensation, supports front actuation, and allows immediate post flush with factory settings. Tool-free installation and maintenance mean no specialist tools are needed at the cistern. The connection bend mounts without tools at an adjustable range of 45 mm.

Water Supply & Connectivity

Water supply connects at the rear or top centre with an R 1/2 connection compatible with MasterFix and MeplaFix. A conduit pipe accommodates the feed pipe for Geberit AquaClean shower toilets and connection cables. Fastening points for the Power & Connect Box are also integrated. The protection box for the service opening cuts to length and guards against moisture and dirt.
